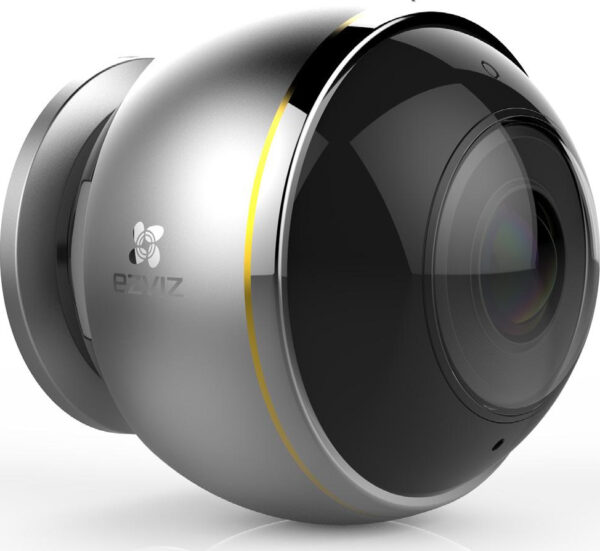

Ezviz IP Wi-Fi Κάμερα Full HD+ Mini Pano
CS-CV346-A0-7A3WFR
3MP Wireless Fisheye Camera
The ez360 Pano features a premium fisheye lens and 3-mega pixel HDR sensor to support 360° omnidirectional monitoring with four viewing modes: panoramic, expanded, dual-split screen and quad-split screen. A panoramic Wi-Fi camera offering complete coverage without any blind spots.
360° Panoramic View
With a 360° panoramic view, the ez360 Pano is an all-seeing eye, giving you complete perspective.
Four-Screen Split Mode
The ez360 Pano can capture and display up to 4 assigned areas of coverage and allows you to navigate within each individual display.
Versatile Viewing Modes
Choose from four different viewing modes – fisheye panoramic, expanded, dual-split screen and quad-split screen modes – to meet your needs.
Triple HD Camera
Equipped with 3 MP starlight level sensor, resolution up to 1344×1344, the ez360 Pano captures crystal clear, fine and vibrant images.
The ez360 Pano stays sharp in the dark with the help of its four 850nm high-end LED infrared lights. Night vision with clear-as-day clarity up to 7.5 meters.
Dual-Band Wi-Fi Connection
The ez360 Pano supports 2.4 GHz and 5 GHz Wi-Fi connectivity, ensuring stable and smooth wireless transmission with greater anti-interference and stability.
Real-Time Two-Way Talk
With a powerful speaker and independent sound cavity, the ez360 Pano delivers real-time, crystal clear and smooth voice transmissions.
– Built-in microphone
– 5-meter pickup
– Supports full duplex voice intercom
– Crystal clear, smooth voice transmission

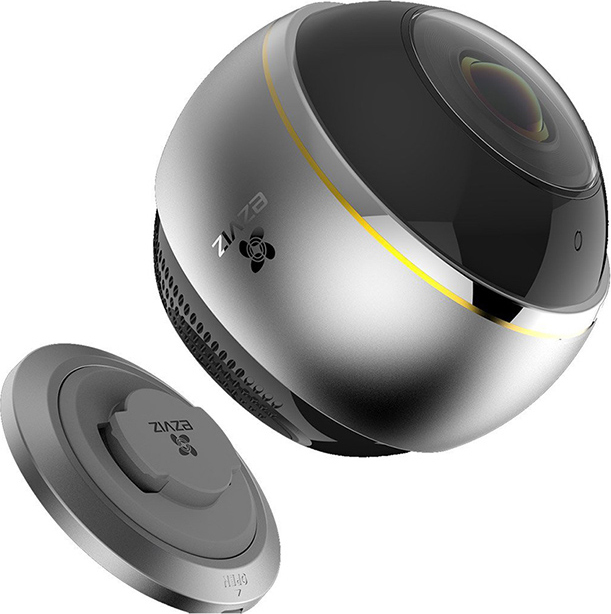

Durable Metal Body
Built with high-strength, anti-corrosion aluminum, the ez360 Pano features smooth texture, long service life and rapid heat dissipation.
Multiple Storage Options
With multiple storage options, you can choose where to save your recording. The cameras can even save to all three locations at the same time for added backup in case a camera is damaged or your network crashes.
Description
| Model Parameters | |
|---|---|
| Model | CS-CV346-A0-7A3WFR |
| Camera | |
| Image Sensor | 3 Megapixel 1/2.8” Progressive Scan CMOS |
| Minimum Illumination | 0.01 lux @(F2.2,AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 1.2mm@ F2.2, Horizontal angle: 180° Diagonal angle: 180° |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Progressive WDR |
| Compression | |
| Video Compression | H.264 |
| H.264 Type | Main profile |
| Video Bit Rate | HD, Balanced and Smooth. Adaptive bit rate |
| Image | |
| Max. Resolution | 1344×1344 |
| Image setting | Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio) |
| BLC | Support |
| Network | |
| Storage | Support Micro SD card (Max. 128G) |
| Smart Alarm | Motion detection |
| Wi-Fi Pairing | SmartConfig (Wi-Fi One-Key Configuration) |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| General Features | Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark |
| Minimum Network Requirements | 2M |
| Wi-Fi | |
| Standard | IEEE802.11a/b/g/n/ac |
| Frequency Range | 2.412GHz ~ 2.462GHz/5.15GHz ~ 5.35GHz/ 5.725GHz ~ 5.825GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps |
| General | |
| Operating Conditions | -10°C ~ 45°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V ±5% |
| Power Consumption | Max. 8W |
| IR Range | Max. 7.5meters |

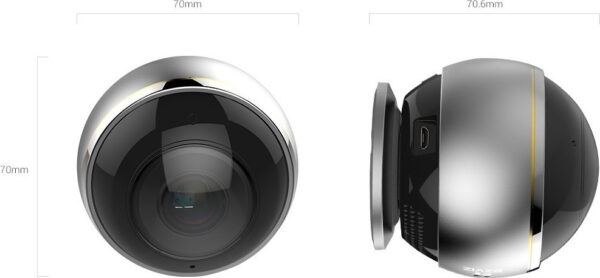

| Product Dimensions | 70mm x 70mm x 70.6mm |
| Packaging Dimensions | 109.5mm x 109.5mm x 123mm |
| Weight | 222g |
